Halogen Free and Antimony Free PI-CCL

Feature
Characteristic
Property Spec AHISR0130-N AHIDR0130-N Test Method
Product structure ----- -----
Thickness (um) ±3 45 75 APLUS Spec
Peel Strength
(kgf/cm)
As Received HOZ ＞0.7 1.20 1.39 IPC-TM650 2.4.9
Chemical Resistance
(MEK,10 min)		 HOZ ＞0.7 1.07 1.14 IPC-TM650 2.3.2
Flexural Endurance (Times)
 M.D. RA SCCL＞600(H mil)
RA SCCL＞400(H mil)		 918 781 JIS-C 6471
0.8mm radius
0.5kg weight
T.D. 866 756
Resin Flow (mm)  < 0.2 < 0.0771 < 0.0923 APLUS Spec
Releasing force (gf/5cm) 5~20 8 11 APLUS Spec
Dimensional Stability Method B (MD/TD) ±0.15% -0.0349 -0.0293 IPC-TM650 2.2.4C
(B) After Etching
(C) 150℃/30min
Method C (MD/TD) ±0.20% -0.0571 -0.0416
Insulation Resistance IR(Ω) ＞1.0E+10 ＞1.0E+10 ＞1.0E+10 IPC-TM650 2.5.17
RS(Ω) ＞1.0E+13 ＞1.0E+13 ＞1.0E+13
RV(Ωcm) ＞1.0E+14 ＞1.0E+14 ＞1.0E+14
Solder Resistance ＞300℃*10s 340℃*10s 340℃*10s IPC-TM650 2.4.13
Shelf Life 30℃↓70%RH↓ 1 year 1 year APLUS Spec

※ ※ The feature value of the product is a representative value, not a specification value.

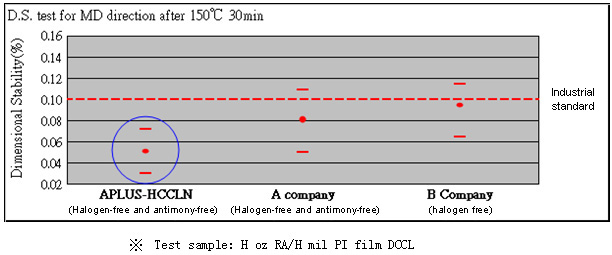

※ Dimensional stability comparison


Production specifications list
Type Item PI Flim
(um)		 Glue AD
(um) 		Copper
(um)
Width
(mm)
 Length
(M)
 Core Diameter
Single Side HCCL-N ED Copper AHISE0100-N 12.5 10 17 250 or 500 100 3 inches
AHISE0130-N 12.5 13 17 250 or 500 100 3 inches
AHISE0133-N 12.5 13 12 250 or 500 100 3 inches
AHISE1130-N 25 13 17 250 or 500 100 3 inches
AHISE1200-N 25 20 17 250 or 500 100 3 inches
AHISE1201-N 25 20 35 250 or 500 100 3 inches
RA Copper AHISR0100-N 12.5 10 17 250 or 500 100 3 inches
AHISR0130-N 12.5 13 17 250 or 500 100 3 inches
AHISR0133-N 12.5 13 12 250 or 500 100 3 inches
AHISR1130-N 25 13 17 250 or 500 100 3 inches
AHISR1200-N 25 20 17 250 or 500 100 3 inches
AHISR1201-N 25 20 35 250 or 500 100 3 inches
Double Side HCCL-N ED Copper AHIDE0100-N 12.5 10 17 250 or 500 50 6 inches
AHIDE0130-N 12.5 13 17 250 or 500 50 6 inches
AHIDE0133-N 12.5 13 12 250 or 500 50 6 inches
AHIDE1130-N 25 13 17 250 or 500 50 6 inches
AHIDE1133-N 25 13 12 250 or 500 50 6 inches
AHIDE1200-N 25 20 17 250 or 500 50 6 inches
AHIDE1201-N 25 20 35 250 or 500 50 6 inches
RA Copper AHIDR0100-N 12.5 10 17 250 or 500 50 6 inches
AHIDR0130-N 12.5 13 17 250 or 500 50 6 inches
AHIDR0133-N 12.5 13 12 250 or 500 50 6 inches
AHIDR1130-N 25 13 17 250 or 500 50 6 inches
AHIDR1200-N 25 20 17 250 or 500 50 6 inches
AHIDR1201-N 25 20 35 250 or 500 50 6 inches

Halogen Free and Antimony Free PET-CCL

Feature
Characteristic
Property Spec AHESR2080 AHESE3201 AHESE2200 Test Method
Product structure ----- -----
Thickness (um) ±3 76 130 88 APLUS Spec
Peel Strength (kgf/cm)
A Common Cu ＞0.7 ----- ＞1.0 ＞0.8 IPC-TM-650 2.4.9
Double-sided bright Cu ＞0.3
 ＞0.51 ----- -----
MEK
/10min		 Common Cu ＞0.5 ----- ＞0.9 ＞0.7
Double-sided bright Cu ＞0.3 ＞0.44 ----- -----
Dimensional Stability (%) MD ±0.10% ＜0.06 ＜0.06 ＜0.02 IPC-TM-650 2.2.4
TD ＜0.03 ＜0.04 ＜0.03
Solder Resistance 230℃×30S Pass Pass Pass IPC-TM-650 2.4.13
UL Flame class UL HB ----- Pass Pass UL 94
Shelf Life ＜30℃/70%RH 1 year 1 year 1 year APLUS Spec

※ The feature value of the product is a representative value, not a specification value.

Production specifications list
Type Item PET Film
(um)		 Glue
AD(um) 		Copper
(um)
Width
(mm)
 Length
(m)
 Core Diameter
Single Side FCCL ED Copper AHESE1200 25 20 18 250 or 500 100 3 inches
AHESE2200 50 20 18 250 or 500 100 3 inches
AHESE2250 50 25 18 250 or 500 100 3 inches
AHESE3201 75 20 35 250 or 500 100 3 inches
RA Copper AHESR2080 50 8 18 609 100 3 inches
