Halogen-free and Antimony Free Stiffener

Feature

• Good thermal stability
• Excellent peel strength
• Excellent Chemical Resistance
• ALL type: 3、4、5、6、7、8、9mil

Characteristic

Property		Spec	AHIQX325	AHIQX525	Test Method
Product Structure		-----			-----
Thickness	μｍ	Standard value ±10	100	150	ASTMD-374-94
Peel Strength (kgf/cm)	PI side	>1.00	＞1.44	＞1.67	IPC-TM-650 2.4.9
	Cu side	>1.00	＞2.40	＞2.55
Solder Resistance	℃	300℃×30S	OK	OK	IPC-TM-650 2.4.13
Resin Flow	mm	≤0.3	＜0.21	＜0.24	APLUS  Spec
Volume Resistivity	Ω.cm	＞1.0E+12	＞2.0E+12	＞5.0E+12	IPC-TM-650 2.5.17
Surface Resistance	Ω	＞1.0E+14	＞3.0E+14	＞6.0E+14
UL  Flame Class	—	94-V0	PASS	PASS	UL 94-V0
Shelf Life	10℃↓70%RH↓	3 months	3 months	3 months	APLUS Spec

※ Fast lamination condition:：at 180℃×100Mpa×60sec
※ The feature value of the product is a representative value, not a specification value.

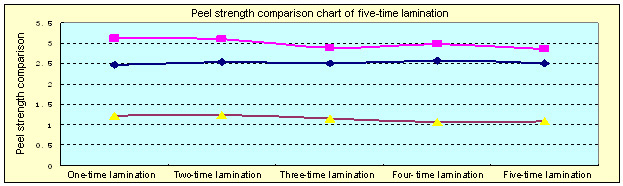

Peel strength

Production specifications list

Type		Item	PI Flim (um)	Glue AD(um)	Copper (um)	Width (mm)	Length (M)	Core Diameter
Halogen-free Stiffener	SONY	AHIQX335XSD	75	35	--	250	100	3 inches
		AHIQX435XSD	100	35	--	250	100	3 inches
		AHIQX535XSD	125	35	--	250	100	6 inches
		AHIQX635XSD	150	35	--	250	50	6 inches
		AHIQX735XSD	175	35	--	250	50	6 inches
		AHIQX835XSD	200	35	--	250	50	6 inches
		AHIQX935XSD	225	35	--	250	50	6 inches
	T Series	AHIQX335XST	75	35	--	250	100	3 inches
		AHIQX435XST	100	35	--	250	100	3 inches
		AHIQX535XST	125	35	--	250	100	6 inches
		AHIQX635XST	150	35	--	250	50	6 inches
		AHIQX735XST	175	35	--	250	50	6 inches
		AHIQX835XST	200	35	--	250	50	6 inches
		AHIQX935XST	225	35	--	250	50	6 inches
