Halogen Free and Antimony Free PI-CCL

Feature

• Green material without halogen and antimony
• Superior dimensional stability
• Excellent thermal stability

Characteristic

Property		Spec	AHISR0130-N	AHIDR0130-N	Test Method
Product structure		-----			-----
Thickness (um)		±3	45	75	APLUS Spec
Peel Strength (kgf/cm)	As Received	HOZ ＞0.7	1.20	1.39	IPC-TM650 2.4.9
	Chemical Resistance (MEK,10 min)	HOZ ＞0.7	1.07	1.14	IPC-TM650 2.3.2
Flexural Endurance (Times)	M.D.	RA SCCL＞600(H mil) RA SCCL＞400(H mil)	918	781	JIS-C 6471 0.8mm radius 0.5kg weight
	T.D.		866	756
Resin Flow (mm)		< 0.2	< 0.0771	< 0.0923	APLUS Spec
Releasing force (gf/5cm)		5~20	8	11	APLUS Spec
Dimensional Stability	Method B (MD/TD)	±0.15%	-0.0349	-0.0293	IPC-TM650 2.2.4C (B) After Etching (C) 150℃/30min
	Method C (MD/TD)	±0.20%	-0.0571	-0.0416
Insulation Resistance	IR(Ω)	＞1.0E+10	＞1.0E+10	＞1.0E+10	IPC-TM650 2.5.17
	RS(Ω)	＞1.0E+13	＞1.0E+13	＞1.0E+13
	RV(Ωcm)	＞1.0E+14	＞1.0E+14	＞1.0E+14
Solder Resistance		＞300℃*10s	340℃*10s	340℃*10s	IPC-TM650 2.4.13
Shelf Life		30℃↓70%RH↓	1 year	1 year	APLUS Spec

※ ※ The feature value of the product is a representative value, not a specification value.

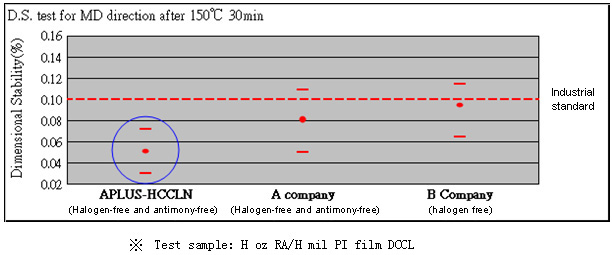

※ Dimensional stability comparison

Production specifications list

Type		Item	PI Flim (um)	Glue AD (um)	Copper (um)	Width (mm)	Length (M)	Core Diameter
Single Side HCCL-N	ED Copper	AHISE0100-N	12.5	10	17	250 or 500	100	3 inches
		AHISE0130-N	12.5	13	17	250 or 500	100	3 inches
		AHISE0133-N	12.5	13	12	250 or 500	100	3 inches
		AHISE1130-N	25	13	17	250 or 500	100	3 inches
		AHISE1200-N	25	20	17	250 or 500	100	3 inches
		AHISE1201-N	25	20	35	250 or 500	100	3 inches
	RA Copper	AHISR0100-N	12.5	10	17	250 or 500	100	3 inches
		AHISR0130-N	12.5	13	17	250 or 500	100	3 inches
		AHISR0133-N	12.5	13	12	250 or 500	100	3 inches
		AHISR1130-N	25	13	17	250 or 500	100	3 inches
		AHISR1200-N	25	20	17	250 or 500	100	3 inches
		AHISR1201-N	25	20	35	250 or 500	100	3 inches
Double Side HCCL-N	ED Copper	AHIDE0100-N	12.5	10	17	250 or 500	50	6 inches
		AHIDE0130-N	12.5	13	17	250 or 500	50	6 inches
		AHIDE0133-N	12.5	13	12	250 or 500	50	6 inches
		AHIDE1130-N	25	13	17	250 or 500	50	6 inches
		AHIDE1133-N	25	13	12	250 or 500	50	6 inches
		AHIDE1200-N	25	20	17	250 or 500	50	6 inches
		AHIDE1201-N	25	20	35	250 or 500	50	6 inches
	RA Copper	AHIDR0100-N	12.5	10	17	250 or 500	50	6 inches
		AHIDR0130-N	12.5	13	17	250 or 500	50	6 inches
		AHIDR0133-N	12.5	13	12	250 or 500	50	6 inches
		AHIDR1130-N	25	13	17	250 or 500	50	6 inches
		AHIDR1200-N	25	20	17	250 or 500	50	6 inches
		AHIDR1201-N	25	20	35	250 or 500	50	6 inches

Halogen Free and Antimony Free PET-CCL

Feature

• Green material without halogen and antimony
• Good peel strength
• Good solder resistance
• Excellent crack resistance
• File No.E246440
• It can be used by antennas of mobile phones

Characteristic

Property		Spec	AHESR2080	AHESE3201	AHESE2200	Test Method
Product structure		-----				-----
Thickness (um)		±3	76	130	88	APLUS Spec
Peel Strength (kgf/cm)	A	Common Cu ＞0.7	-----	＞1.0	＞0.8	IPC-TM-650 2.4.9
		Double-sided bright Cu ＞0.3	＞0.51	-----	-----
	MEK /10min	Common Cu ＞0.5	-----	＞0.9	＞0.7
		Double-sided bright Cu ＞0.3	＞0.44	-----	-----
Dimensional Stability (%)	MD	±0.10%	＜0.06	＜0.06	＜0.02	IPC-TM-650 2.2.4
	TD		＜0.03	＜0.04	＜0.03
Solder Resistance		230℃×30S	Pass	Pass	Pass	IPC-TM-650 2.4.13
UL Flame class		UL HB	-----	Pass	Pass	UL 94
Shelf Life		＜30℃/70%RH	1 year	1 year	1 year	APLUS Spec

※ The feature value of the product is a representative value, not a specification value.

Production specifications list

Type		Item	PET Film (um)	Glue AD(um)	Copper (um)	Width (mm)	Length (m)	Core Diameter
Single Side FCCL	ED Copper	AHESE1200	25	20	18	250 or 500	100	3 inches
		AHESE2200	50	20	18	250 or 500	100	3 inches
		AHESE2250	50	25	18	250 or 500	100	3 inches
		AHESE3201	75	20	35	250 or 500	100	3 inches
	RA Copper	AHESR2080	50	8	18	609	100	3 inches
