Single side

Feature

• Superior dimensional stability under high Temperature
• Excellent flexural endurance/MIT
• Small change rate of peel strength under high temperature
• Made wide range of product structure 1/4oz～1oz cu and various PI thickness
• Green material/Halogen-free and Phosphorous-free

Characteristic

Property		Spec	2NUSR 1318	2NUSR 2018	Test Method
Product structure		-----			-----
Thickness of total (um)		±10 %	31	38	-----
Peel Strength (kgf/cm)	As Received	＞1.0	1.20	1.25	IPC-TM650 2.4.9
	Solder Float (288 ℃,30S)		1.05	1.10
	After Aging (200 ℃,1HR)		1.20	1.15	IPC-TM650 2.3.2
	Chemical Resistance (MEK,10 min)		1.15	1.10
Flexural Endurance (Times)	M.D.	＞1000 (H0Z)	＞1500	＞1200	JIS-C 6471 0.8mm radius 0.5kg weight
	T.D.
Tensile Strength (kgf/mm2)		＞15	＞20	＞20	IPC-TM650 2.5.19
Elongation (%)		＞20	＞20	＞20
Dimensional Stability (%)		≦ 0.1	-0.050（B） -0.080（C）	-0.050（B） -0.080（C）	IPC-TM650 2.2.4C
Solder Resistance		340℃×10S	Pass	Pass	IPC-TM650 2.4.13
UL Flame Class		-----	94V-0	94V-0	UL

※ Dimensional stability (B)After Etching test (C) 150℃/30min test
※ The feature value of the product is a representative value, not a specification value.

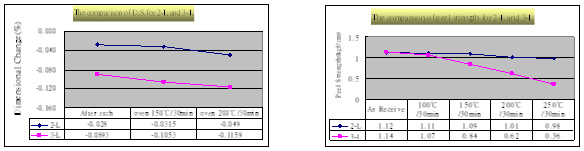

Product feature contrast curve (The comparison of the properties for 2-L and 3-L)

Production specifications list

Type		Item	PI Flim (um)	Glue AD(um)	Copper (um)	Width (mm)	Length (m)	Core Diameter
Single Side FCCL	ED Copper	2NUSE1309X	13	-	9	250 or 500	100	3 inches
		2NUSE0812X	8	-	12	250 or 500	100	3 inches
		2NUSE1312X	13	-	12	250 or 500	100	3 inches
		2NUSE2012X	20	-	12	250 or 500	100	3 inches
		2NUSE1318X	13	-	17	250 or 500	100	3 inches
		2NUSE2035X	20	-	35	250 or 500	100	3 inches
		2NUSE2518X	25	-	17	250 or 500	100	3 inches
		2NUSE2535X	25	-	35	250 or 500	100	3 inches
	RA Copper	2NUSR1318X	13	-	17	250 or 500	100	3 inches
		2NUSR2018X	20	-	17	250 or 500	100	3 inches
		2NUSR2518X	25	-	17	250 or 500	100	3 inches
		2NUSR2535X	25	-	35	250 or 500	100	3 inches
		2NUSR5035X	50	-	35	250 or 500	100	3 inches

Double side

Feature

• Superior dimensional stability under high Temperature
• Excellent flexural endurance/MIT
• Small change rate of peel strength under high temperature
• Made wide range of product structure 1/4oz～1oz cu and various PI thickness
• Green material/Halogen-free and Phosphorous-free

Characteristic

Property		Spec	DL-1212-E	DL-2009-E	Test Method
Product structure		-----			-----
Thickness of total (um)		±10 %	36	38	-----
Peel Strength (kgf/cm)	Casting.	＞0.9	1.9	1.8	IPC-TM650 2.4.9
	Lami.	＞0.7	2.4	2.2
Flexural Endurance (Times)	Casting.	＞500	712	917	JIS-C 6471 0.8mm radius 0.5kg weight
	Lami.		729	934
Dimensional Stability (%)	MD	≦ 0.2	-0.079	-0.097	IPC-TM650 2.2.4C
	TD		-0.076	-0.062
UL Flame Class		-----	94V-0	94V-0	UL

※ The feature value of the product is a representative value, not a specification value.

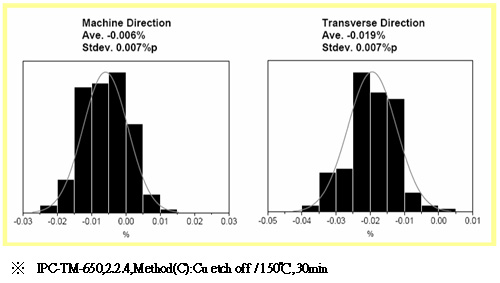

Product feature curve ( specification DL-2012-E Dimensional Stability )

Production specifications list

Type		Item	PI Flim （um）	Glue AD(um)	Copper (um)	Width (mm)	Length (m)	Core Diameter
Double side FCCL	ED Copper	DL-1209-E	12	-	9	250 or 500	100	3 inches
		DL-2009-E	20	-	9	250 or 500	100	3 inches
		DL-2509-E	25	-	9	250 or 500	100	3 inches
		DL-1212-E	12	-	12	250 or 500	100	3 inches
		DL-2012-E	20	-	12	250 or 500	100	3 inches
		DL-2512-E	25	-	12	250 or 500	100	3 inches
		DL-1218-E	12	-	18	250 or 500	100	3 inches
		DL-2018-E	20	-	18	250 or 500	100	3 inches
		DL-2518-E	25		18	250 or 500	100	3 inches
